Overview

The Reports page schedules and defines tenant reports for CDR, inbound, outbound, and queue activity data. Open it from Configuration > More Configuration > Reports.

The page works against the tenant currently selected in the top bar. The screenshots and demo rows were captured in the Canistracci OIL tenant.

Working with objects

Task	How to do it
Add	Select the New report action, complete the form, and select Save.
Edit	Open the report from the list by selecting its name, number, or row action. Change the form and select Save.
Delete	Select the row checkbox and use Delete Selected, or open the report and select Delete, then confirm.

Page functions

Action	Description
Show Reports	Opens a related detail or results view.
New Report	Opens the creation form for a new report.
Delete Selected	Deletes the selected rows after confirmation.
Run	Runs the Run action.

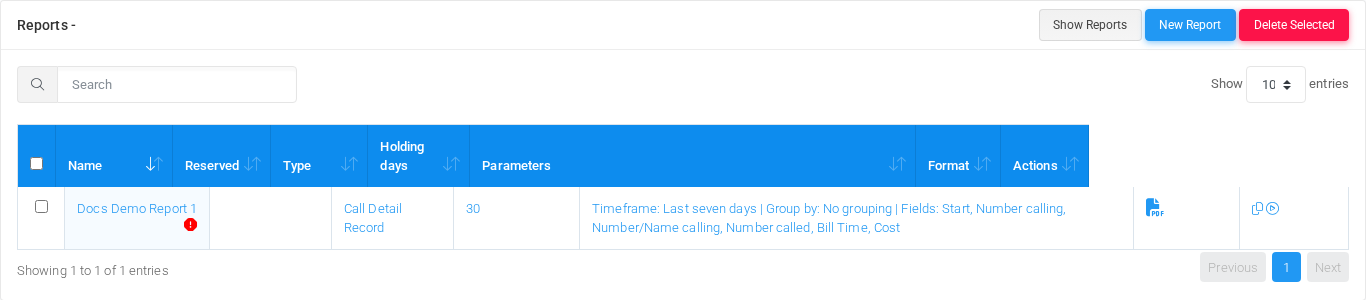

List columns

Column	Description
Name	Display name used in lists and references.
Reserved	Object setting shown by the form.
Type	Mode selector that changes the behavior of the object.
Holding days	Object setting shown by the form.
Parameters	Object setting shown by the form.
Format	Object setting shown by the form.
Actions	Object setting shown by the form.

Form sections

SectionDescription InformationCore identity and routing fields for the object. PageSettings shown in the Page block. ScheduleScheduling controls for when the object runs. DeliveryEmail or output delivery settings.

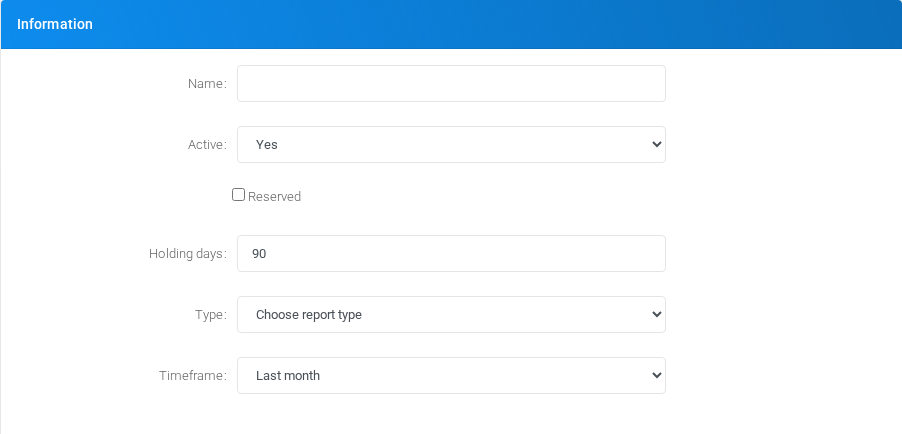

Information

Core identity and routing fields for the object.

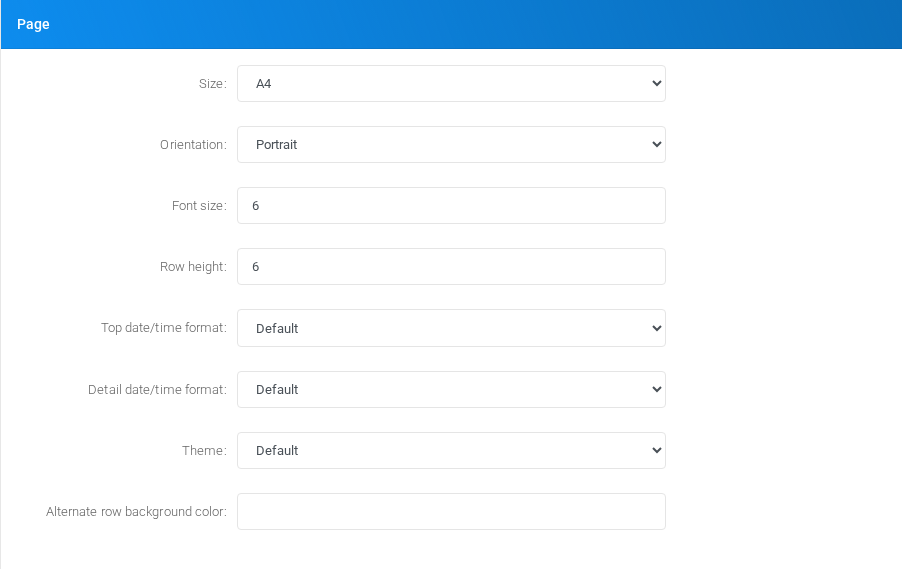

Page

Settings shown in the Page block.

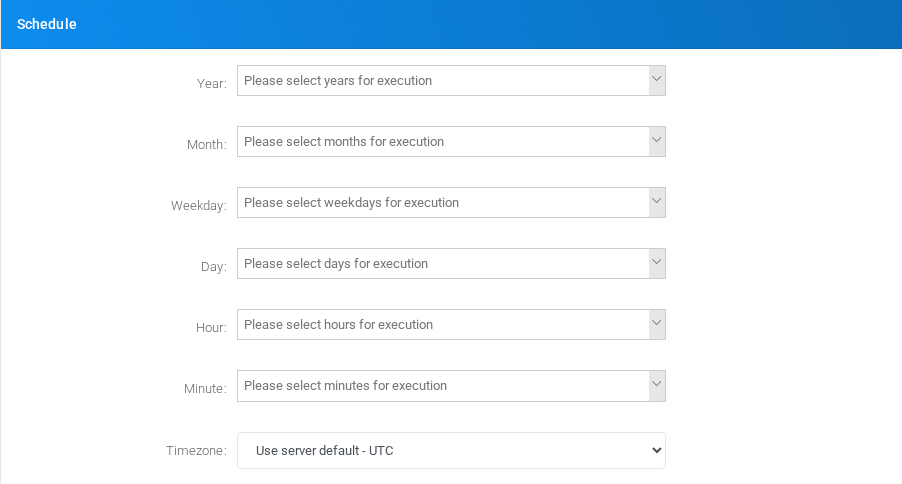

Schedule

Scheduling controls for when the object runs.

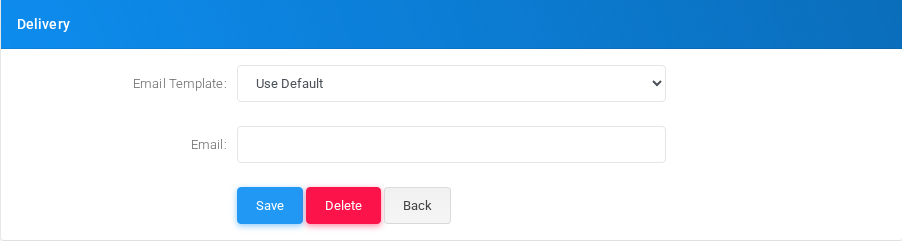

Delivery

Email or output delivery settings.

Main fields

FieldDescription Name:Display name used in lists and references. Active:Object setting shown by the form. ReservedObject setting shown by the form. Holding days:Object setting shown by the form. Type:Mode selector that changes the behavior of the object. Timeframe:Object setting shown by the form. Custom timeframe start:Object setting shown by the form. Custom timeframe end:Object setting shown by the form. Group by:Object setting shown by the form. Direction:Object setting shown by the form. PIN list:Credential or PIN value. Treat it as sensitive. Report calls with cost:Object setting shown by the form. Disposition:Object setting shown by the form. Order by:Object setting shown by the form. Hourly details:Object setting shown by the form.

Demo records

The tenant contains 1 documentation demo record for this page: Docs Demo Report 1.

Deleting records

Before deleting a report, check references from call flows, destinations, schedules, reports, or provisioning objects. MiRTA PBX asks for confirmation before the delete is submitted.
