Conference Rooms

The Conference Rooms page creates dial-in conference rooms with optional PINs, limits, announcements, and recording options. Open it from Configuration > Conference Rooms.

The page works against the tenant currently selected in the top bar. The screenshots and demo rows were captured in the Canistracci OIL tenant.

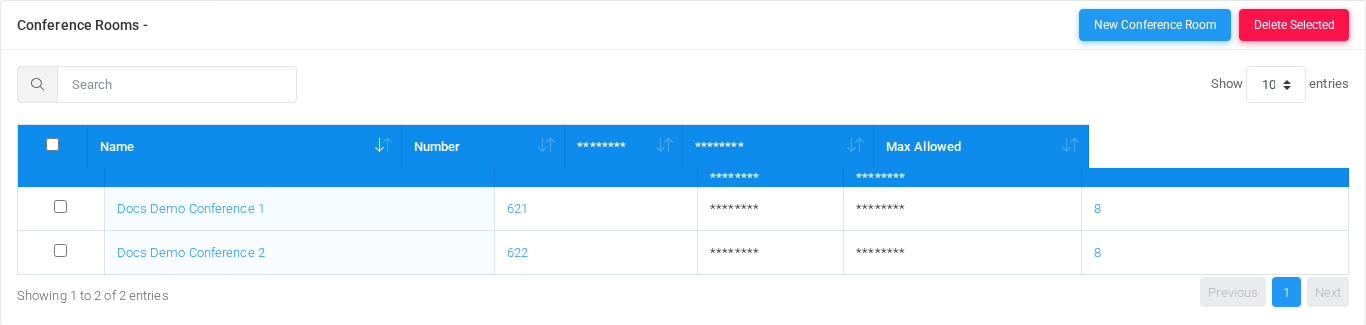

{{conference-rooms-list}}

Working with objects

Task	How to do it
Add	Select the New conference room action, complete the form, and select Save.
Edit	Open the conference room from the list by selecting its name, number, or row action. Change the form and select Save.
Delete	Select the row checkbox and use Delete Selected, or open the conference room and select Delete, then confirm.

Page functions

Action	Description
New Conference Room	Opens the creation form for a new conference room.
Delete Selected	Deletes the selected rows after confirmation.

List columns

Column	Description
Name	Display name used in lists and references.
Number	Dialed value, identifier, or matching value used by the PBX.
PIN	Credential or PIN value. Treat it as sensitive.
Admin PIN	Credential or PIN value. Treat it as sensitive.
Max Allowed	Object setting shown by the form.

Add and edit form

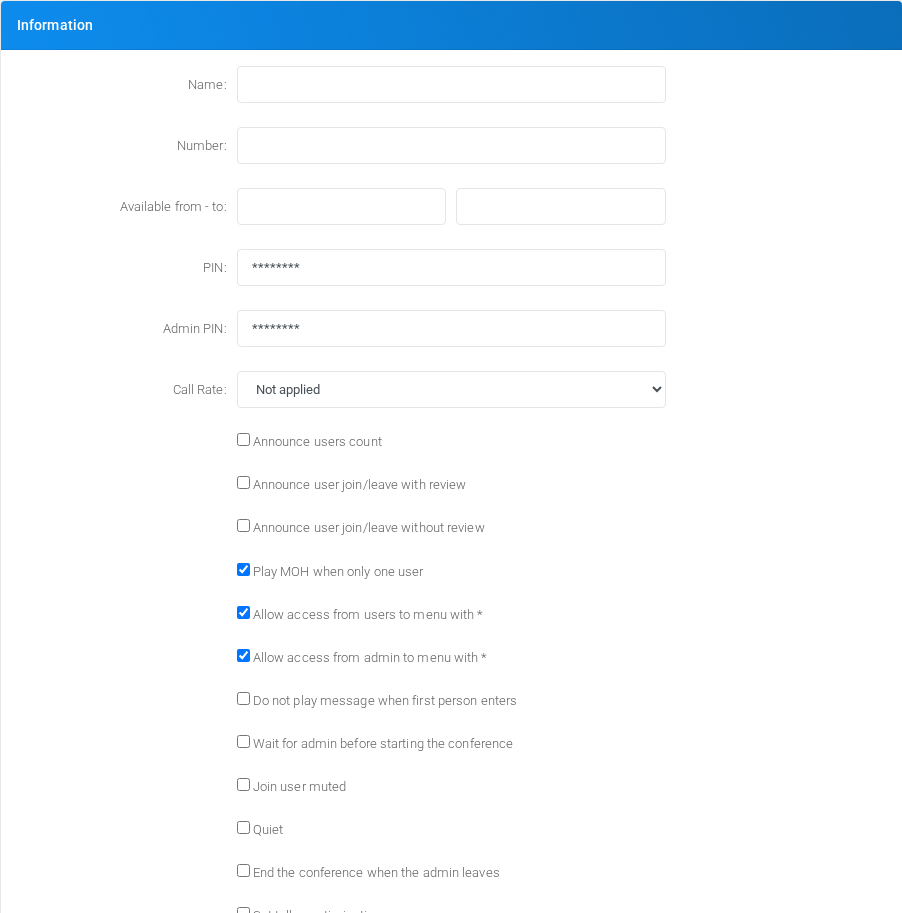

{{conference-rooms-form}}

Main fields

Field	Description
Name:	Display name used in lists and references.
Number:	Dialed value, identifier, or matching value used by the PBX.
Available from - to:	Object setting shown by the form.
PIN:	Credential or PIN value. Treat it as sensitive.
Admin PIN:	Credential or PIN value. Treat it as sensitive.
Call Rate:	Object setting shown by the form.
announcecount	Object setting shown by the form.
announcenamereview	Display name used in lists and references.
announcenamenoreview	Display name used in lists and references.
playmoh	Object setting shown by the form.
allowmenu	Object setting shown by the form.
allowadminmenu	Object setting shown by the form.
donotplaymessage	Object setting shown by the form.
startwhenadmin	Object setting shown by the form.
joinusermuted	Object setting shown by the form.
quiet	Object setting shown by the form.
endwhenadmin	Object setting shown by the form.
talkeroptimization	Object setting shown by the form.
talkeradminoptimization	Object setting shown by the form.
record	Recording behavior or recording delivery setting.
Request PIN message:	Credential or PIN value. Treat it as sensitive.
Correct PIN message:	Credential or PIN value. Treat it as sensitive.
Correct admin PIN message:	Credential or PIN value. Treat it as sensitive.
Max user allowed:	Object setting shown by the form.
Send conference report to:	Object setting shown by the form.
Conference Server:	Server, host, or node selection used by the object.

Demo records

The tenant contains 2 documentation demo records for this page: Docs Demo Conference 1 and Docs Demo Conference 2.

Deleting records

Before deleting a conference room, check references from call flows, destinations, schedules, reports, or provisioning objects. MiRTA PBX asks for confirmation before the delete is submitted.
