Overview
The Conditions page defines reusable tests for schedules, caller identity, channel usage, queue state, variables, authentication, and other routing decisions. Open it from Configuration > Conditions.

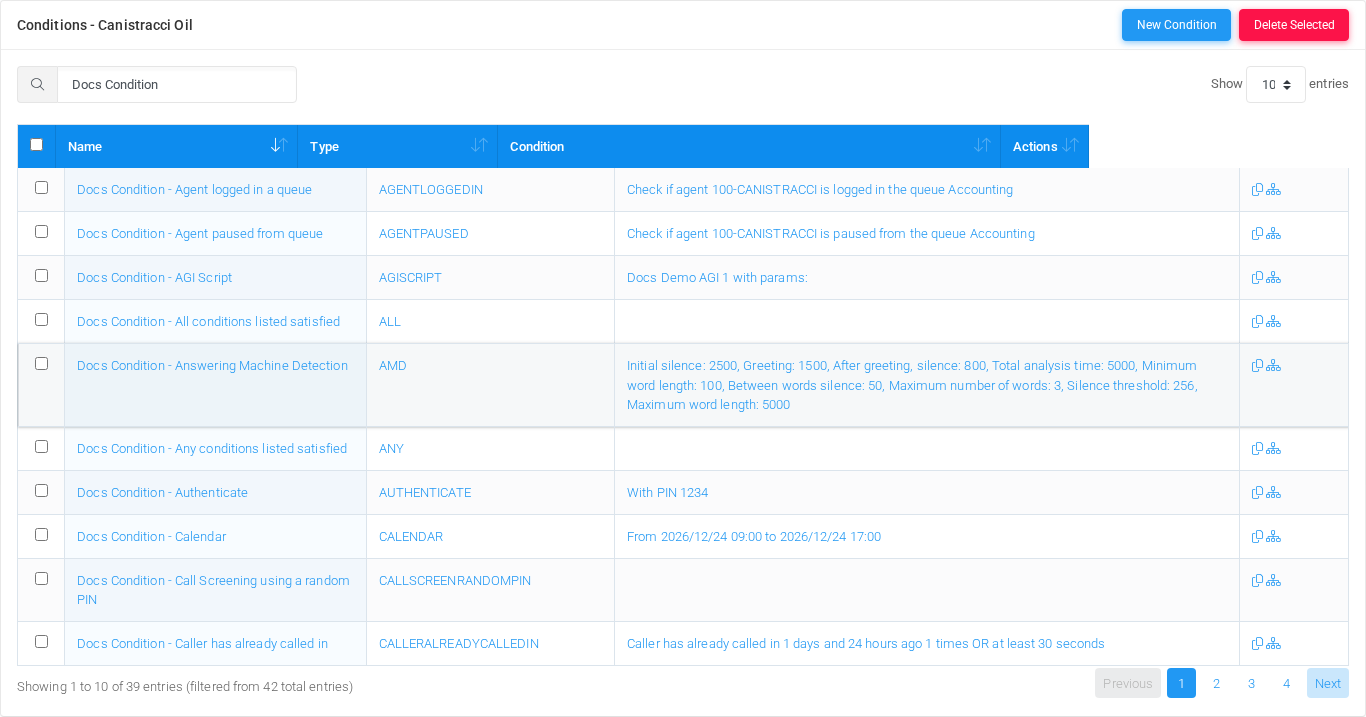

The page works against the tenant currently selected in the top bar. The screenshots and demo rows were captured in the Canistracci OIL tenant.
Working with conditions
| Task | How to do it |
|---|---|
| Add | Select New Condition, enter a name, choose the condition type, complete the type-specific fields, and select Save. |
| Edit | Open a condition by selecting its name in the list, change the fields, and select Save. |
| Duplicate | Use the duplicate action in the Actions column to copy an existing condition before changing it. |
| Delete | Select one or more rows and use Delete Selected, or open a condition and delete it after checking references. |
| Show flow | Use the flow action in the Actions column to inspect where the condition routes calls. |
Page functions
| Action | Description |
|---|---|
| New Condition | Opens the creation form for a new condition. |
| Delete Selected | Deletes selected conditions after confirmation. |
| Search | Filters the visible rows by name, type, condition summary, or action text. |
| Sort | Sorts the list by the selected column. |
| Page size | Changes how many conditions are shown per page. |
List columns
| Column | Description |
|---|---|
| Select | Selects a condition for bulk deletion. |
| Name | Condition display name. Select it to edit the condition. |
| Type | Condition type code used by MiRTA PBX. |
| Condition | Human-readable summary of the configured match rule. |
| Actions | Duplicate and flow-inspection actions for the row. |
Condition types
| Type | Purpose | Example record |
|---|---|---|
| Weektime | Matches weekly recurring time slots, such as business hours or after-hours periods. | Docs Condition - Weektime |
| Calendar | Matches absolute date and time ranges for holidays, maintenance windows, and one-off closures. | Docs Condition - Calendar |
| Hours | Matches one or more daily time ranges without selecting specific weekdays. | Docs Condition - Hours |
| Simple Caller ID | Matches the caller number against one or more literal values or regular expressions. | Docs Condition - Simple Caller ID |
| Simple Caller ID Name | Matches the caller name against one or more literal values or regular expressions. | Docs Condition - Simple Caller ID Name |
| Weekday | Matches selected days of the week. | Docs Condition - Weekday |
| Date - exact match | Matches one or more exact dates or date/time values. | Docs Condition - Date - exact match |
| Date - lesser than date | Matches when the current date/time is earlier than the configured date/time. | Docs Condition - Date - lesser than date |
| Date - greater than date | Matches when the current date/time is later than the configured date/time. | Docs Condition - Date - greater than date |
| Date - between dates | Matches when the current date/time is between a configured start and end value. | Docs Condition - Date - between dates |
| Day of the month | Matches a specific day number in the month. | Docs Condition - Day of the month |
| Extension status | Matches the state of one selected extension or numbered flow. | Docs Condition - Extension status |
| Variable value | Matches a tenant user variable value. | Docs Condition - Variable value |
| Multiple variable values | Matches one variable against multiple possible values, each with its own destination path. | Docs Condition - Multiple variable values |
| System variable value | Matches an Asterisk or system channel variable value. | Docs Condition - System variable value |
| Multiple extensions status | Checks the combined state of multiple selected extensions. | Docs Condition - Multiple extensions status |
| AGI Script | Runs an AGI script and compares the AGIRESULT variable with TRUE. | Docs Condition - AGI Script |
| Authenticate | Prompts the caller for a PIN and matches when authentication succeeds. | Docs Condition - Authenticate |
| Tenant - number of I/O channels (external) | Matches when the tenant has more than the configured number of external channels in use. | Docs Condition - Tenant - number of I/O channels (external) |
| Tenant - number of any channels (internal and external) | Matches when the tenant has more than the configured number of total channels in use. | Docs Condition - Tenant - number of any channels (internal and external) |
| DID - number of inbound channels | Matches when a selected DID has more than the configured number of inbound channels in use. | Docs Condition - DID - number of inbound channels |
| Number of custom group channels | Matches when a custom channel group has more than the configured number of active channels. | Docs Condition - Number of custom group channels |
| Answering Machine Detection | Runs answering machine detection and matches according to the analysis result. | Docs Condition - Answering Machine Detection |
| SIP Header | Matches a SIP header against a regular expression. | Docs Condition - SIP Header |
| Agent logged in a queue | Matches when the selected agent is logged in to the selected queue. | Docs Condition - Agent logged in a queue |
| Agent paused from queue | Matches when the selected agent is paused in the selected queue. | Docs Condition - Agent paused from queue |
| Caller ID in Phonebook | Matches when caller ID is found in a selected phone book. | Docs Condition - Caller ID in Phonebook |
| Feature code parameter | Matches parameters collected by a feature code. | Docs Condition - Feature code parameter |
| All conditions listed satisfied | Matches only when every selected condition is satisfied. | Docs Condition - All conditions listed satisfied |
| Any conditions listed satisfied | Matches when at least one selected condition is satisfied. | Docs Condition - Any conditions listed satisfied |
| Negate condition result | Matches when the selected condition does not match. | Docs Condition - Negate condition result |
| Use a Global Condition | References a global condition from the tenant configuration. | Docs Condition - Use a Global Condition |
| Check SMS message | Matches SMS message content. | Docs Condition - Check SMS message |
| Check if a specific channel is running | Checks whether a channel matching the configured attributes is currently running. | Docs Condition - Check if a specific channel is running |
| Multiple destination over weektime | Routes to different destinations based on a color-coded weekly timetable. | Docs Condition - Multiple destination over weektime |
| Call Screening using a random PIN | Screens a call by playing a prompt and asking the caller to enter a generated PIN. | Docs Condition - Call Screening using a random PIN |
| Caller has already called in | Checks recent inbound call history for the current caller. | Docs Condition - Caller has already called in |
| Caller has been called out | Checks recent outbound call history for the current caller. | Docs Condition - Caller has been called out |
| Queue Callers, more than | Matches when a selected queue has more than the configured number of callers waiting. | Docs Condition - Queue Callers, more than |
Demo records
The Canistracci OIL tenant contains one documentation example for each available condition type: 39 records with names beginning with Docs Condition -. A global example named Docs Global Condition - Weektime is also available for the Use a Global Condition type.
Deleting records
Before deleting a condition, check call flows, destinations, schedules, IVRs, feature codes, and reports that may reference it. MiRTA PBX asks for confirmation before the delete is submitted.
