DAHDI Provider
Use DAHDI technology for analog, PRI, or hardware channel-group resources that are managed by the telephony node outside SIP/PJSIP realtime. DAHDI providers do not show the realtime account block.
DAHDI Field Details
| Field | Applies to | Purpose | Fictional example |
|---|---|---|---|
| Technology | DAHDI only | Use when routing to analog, PRI, or channel-group resources managed by DAHDI outside SIP/PJSIP realtime. | DAHDI |
| Peer Name | DAHDI only | Identifier operators recognize as the DAHDI group or channel target. | dahdi_docs_group1 |
| CallerID Presentation | DAHDI only | Controls presentation flags applied before dialing through the DAHDI provider. | Auto Privacy and Screen |
| Digits to Add / Remove | DAHDI only | Normalizes outbound numbers for PSTN gateway expectations. | Remove 0, add blank |
| Get number from / Set to | Inbound DAHDI use | Sets or normalizes the inbound called number when signaling does not carry the DID in a SIP-style header. | Set to +15551234444 |
| Max outbound channels | DAHDI only | Protects limited analog or PRI capacity. | 4 |
Shared Fields Still Used
DAHDI providers still use provider name, peer name, status, outbound digit manipulation, caller ID presentation, caller ID overrides, caller ID allowed regex, max outbound channels, penalty, inbound digit manipulation, DID modifications, custom variables, and save/delete controls.

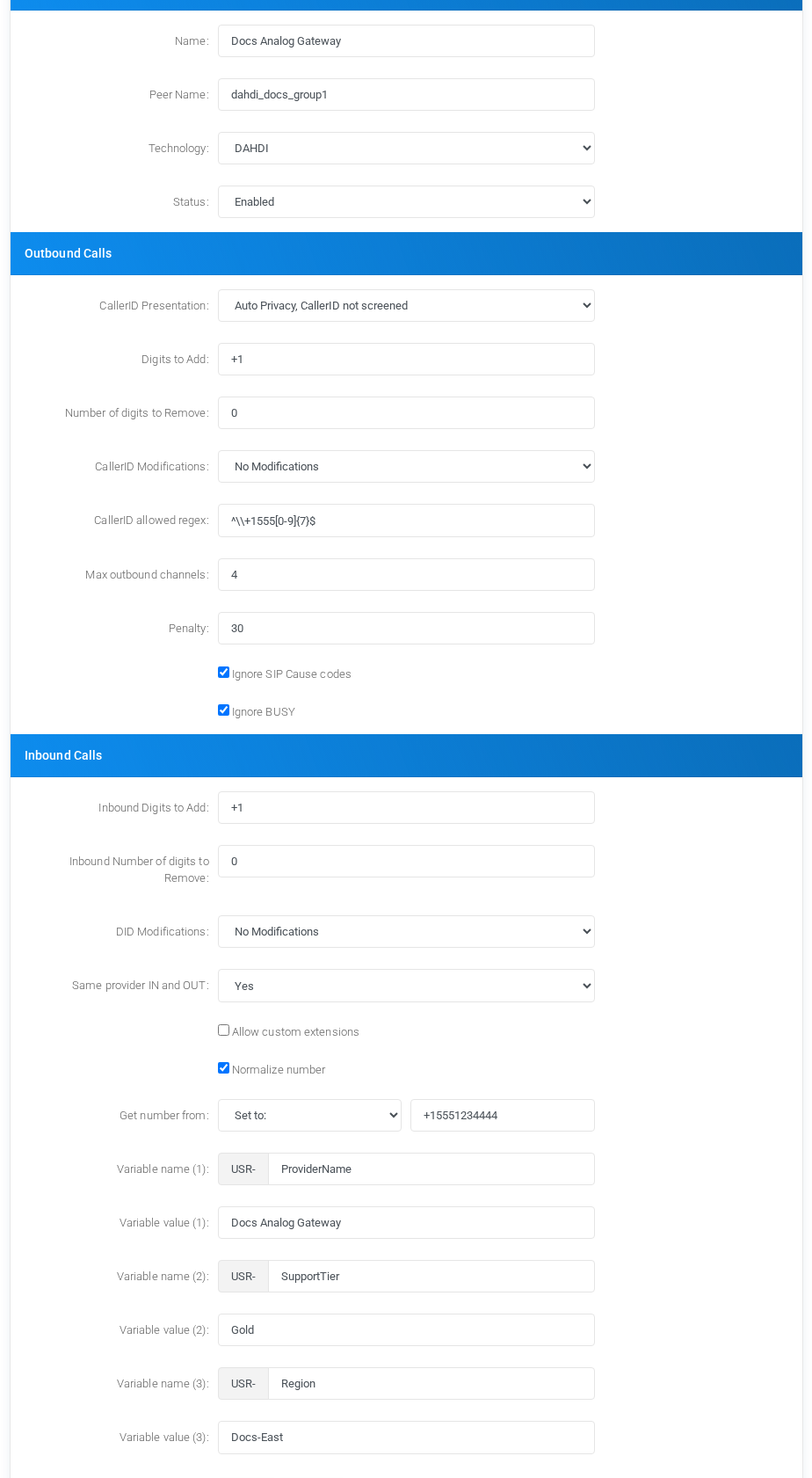

Fictional DAHDI Example
Name: Docs Analog Gateway
Peer Name: dahdi_docs_group1
Technology: DAHDI
Status: Enabled
Max outbound channels: 4
Get number from: Set to +15551234444
