These fields appear on the provider page before technology-specific realtime options. Some fields are hidden when they do not apply to the selected provider technology.
Information

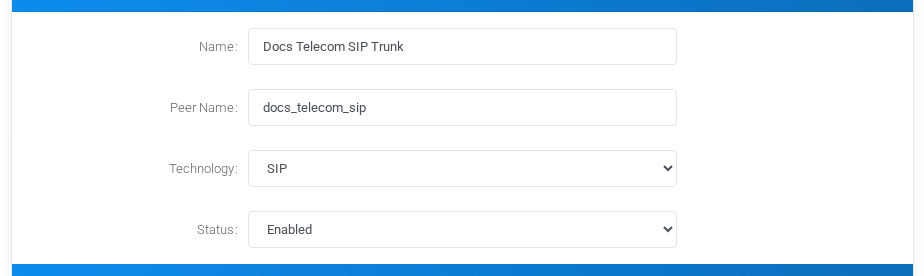

Provider Information fields filled with fictional SIP values.
Field
Applies to
Purpose
Fictional example
Name
All technologies
Friendly provider name shown in provider lists, route choices, reports, and provider-cost screens.
Docs Telecom SIP Trunk
Peer Name
All technologies
Stable technical identifier used by routing and, for realtime accounts, by Asterisk peer or endpoint rows. Keep it unique and avoid spaces.
docs_telecom_sip
Technology
All technologies
Selects the provider driver or service type. It controls which realtime and SMS fields are visible.
SIP, PJSIP, IAX2, DAHDI, LOCAL, or SMS
Status
All technologies
Controls whether the provider is usable. Enabled allows inbound and outbound use, Disabled removes it from routing, Only Inbound keeps inbound handling only.
Enabled
Provider Costs
Existing providers
Opens the provider-cost editor for rating or cost data associated with the provider.
Open costs for Docs Telecom SIP Trunk
Outbound Calls

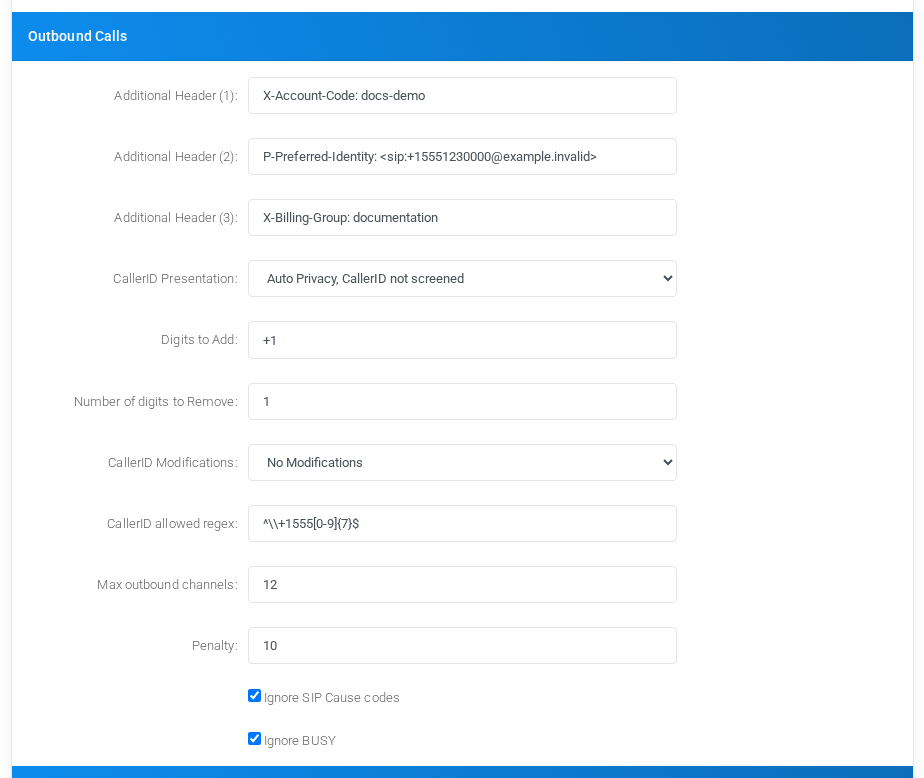

Outbound Calls fields with fictional caller ID, digit, header, and routing values.
Field
Applies to
Purpose
Fictional example
Additional Header 1-6
SIP, PJSIP, IAX2, SMS
Adds SIP headers or SMS HTTP headers. Use one header per field in Header-Name: value format.
X-Account-Code: docs-demo
CallerID Presentation
SIP, PJSIP, IAX2, DAHDI, LOCAL
Controls privacy and screening information sent when routing calls through the provider.
Auto Privacy, CallerID not screened
Digits to Add
All outbound providers
Prepends digits to the called number before the call or SMS is sent to the provider.
+1
Number of digits to Remove
All outbound providers
Removes leading digits from the called number before adding any outbound prefix.
1
CallerID Modifications
Voice providers
Optional outbound caller ID modification rule applied before the call leaves through this provider.
No Modifications or Docs US E164 CallerID
CallerID
Voice providers
Forces a caller ID number for every call using the provider. Leave blank to use extension-derived caller ID.
+15551230000
CallerID Name
Voice providers
Forces a caller ID name for every call using the provider. Leave blank to use extension-derived caller ID name.
Docs Main
CallerID allowed regex
Voice providers
Validates caller ID numbers accepted by the carrier. If the current caller ID does not match, MiRTA PBX falls back to DID, extension, or tenant defaults.
^\+1555[0-9]{7}$
Max outbound channels
All outbound providers
Limits concurrent outbound channels. When the limit is reached, routing skips to another provider. Use Unlimited for no limit.
12
Penalty
All outbound providers
Provider selection weight used by routing and round-robin choices. Lower penalty is preferred.
10
Ignore SIP Cause codes
Voice providers
Continues to another provider even when this provider returns a SIP failure cause.
checked for fallback routing
Ignore BUSY
Voice providers
Continues to another provider when this provider returns BUSY and the route should keep searching.
checked for multi-carrier routes
Inbound Calls

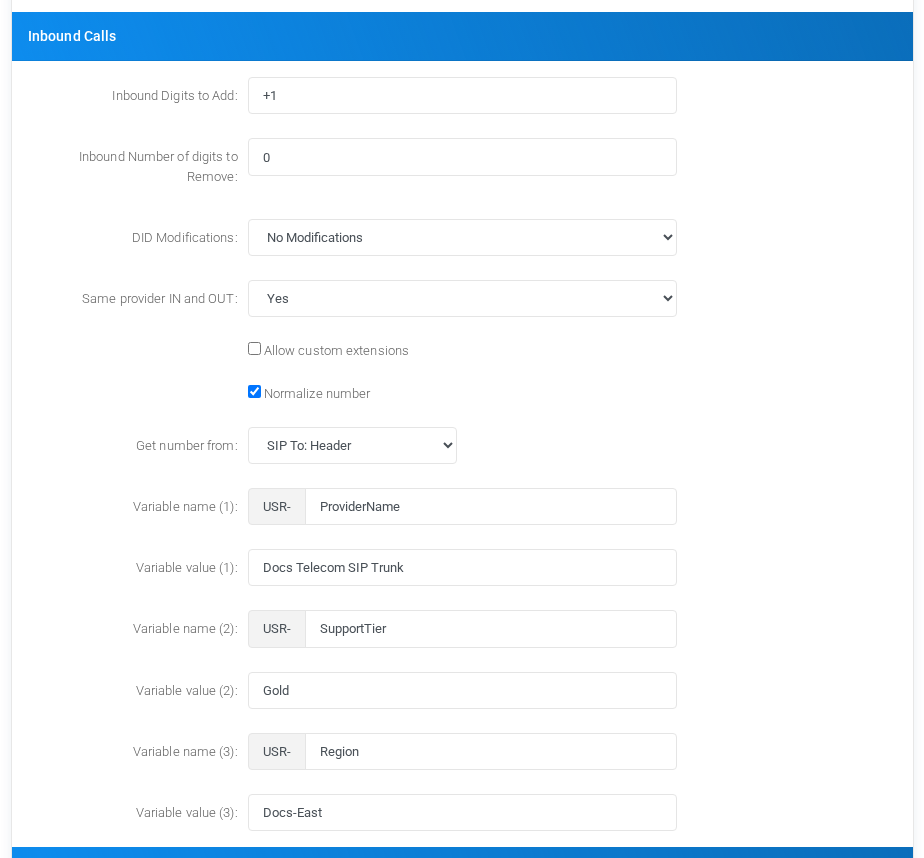

Inbound Calls fields with fictional DID normalization and user variables.
Field
Applies to
Purpose
Fictional example
Inbound Digits to Add
Inbound voice providers
Prepends digits to the inbound DID or called number before destination matching.
+1
Inbound Number of digits to Remove
Inbound voice providers
Removes leading digits from the inbound DID or called number before adding any inbound prefix.
0
DID Modifications
Inbound voice providers
Optional modification rule applied to inbound called numbers before DID matching.
Docs US DID Normalize
Same provider IN and OUT
Inbound and forwarded voice calls
Controls whether calls entering from the provider may also be sent out through the same provider.
Yes
Allow custom extensions
Inbound voice providers
Allows inbound calls from the provider to match custom extensions. Use only for trusted providers.
unchecked
Normalize number
Inbound voice providers
Removes URI or signaling decoration before matching the number to PBX destinations.
checked
Get number from
Inbound SIP/PJSIP-style signaling
Chooses where the inbound called number is read from: standard Request-URI, SIP To header, or a fixed value.
SIP To: Header
Set to
When Get number from is Set to
Fixed DID or destination number used instead of a number from signaling.
+15551239999
Variable name 1-3
Inbound voice providers
Custom inbound channel variable name stored with the USR- prefix for routing or dialplan logic.
ProviderName
Variable value 1-3
Inbound voice providers
Value assigned to the matching custom inbound channel variable.
Docs Telecom SIP Trunk
Save, Delete, and Back
Field
Applies to
Purpose
Fictional example
Save
All providers
Stores the provider and creates, updates, or removes realtime account rows as required by the selected technology and Use Realtime Account.
Save after replacing all fictional values.
Delete
Existing providers
Deletes the provider and removes related realtime rows for SIP, PJSIP, or IAX2 providers.
Delete an unused Docs Test Provider after checking routing references.
Back
All providers
Returns to the Providers list without submitting the form.
Use after reviewing settings.
Floating Save
Long forms
Lets administrators save from lower sections without scrolling back to the bottom button row.
