Overview

The Paging and Intercoms page creates paging and intercom groups with announcement, bidirectional audio, and SIP header behavior. Open it from Configuration > More Configuration > Paging & Intercoms.

The page works against the tenant currently selected in the top bar. The screenshots and demo rows were captured in the Canistracci OIL tenant.

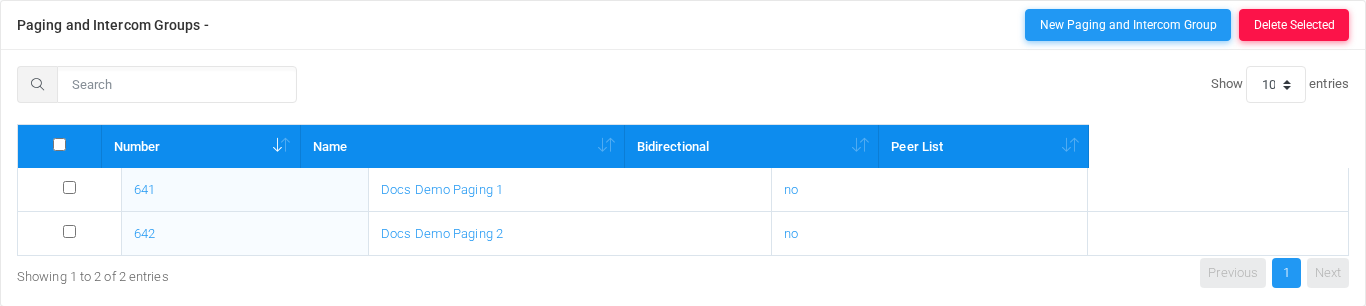

Paging and Intercoms list page in the Canistracci OIL tenant.

Working with objects

Task	How to do it
Add	Select the New paging and intercom group action, complete the form, and select Save.
Edit	Open the paging and intercom group from the list by selecting its name, number, or row action. Change the form and select Save.
Delete	Select the row checkbox and use Delete Selected, or open the paging and intercom group and select Delete, then confirm.

Page functions

Action	Description
New Paging and Intercom Group	Opens the creation form for a new paging and intercom group.
Delete Selected	Deletes the selected rows after confirmation.

List columns

Column	Description
Number	Dialed value, identifier, or matching value used by the PBX.
Name	Display name used in lists and references.
Bidirectional	Object setting shown by the form.
Peer List	Object setting shown by the form.

Demo records

The tenant contains 2 documentation demo records for this page: Docs Demo Paging 1 and Docs Demo Paging 2.

Deleting records

Before deleting a paging and intercom group, check references from call flows, destinations, schedules, reports, or provisioning objects. MiRTA PBX asks for confirmation before the delete is submitted.
