Overview

The Button Layouts page defines reusable phone button ranges, layout templates, and phone-book button behavior. Open it from Configuration > Provisioning > Button Layouts.

The page works against the tenant currently selected in the top bar. The screenshots and demo rows were captured in the Canistracci OIL tenant.

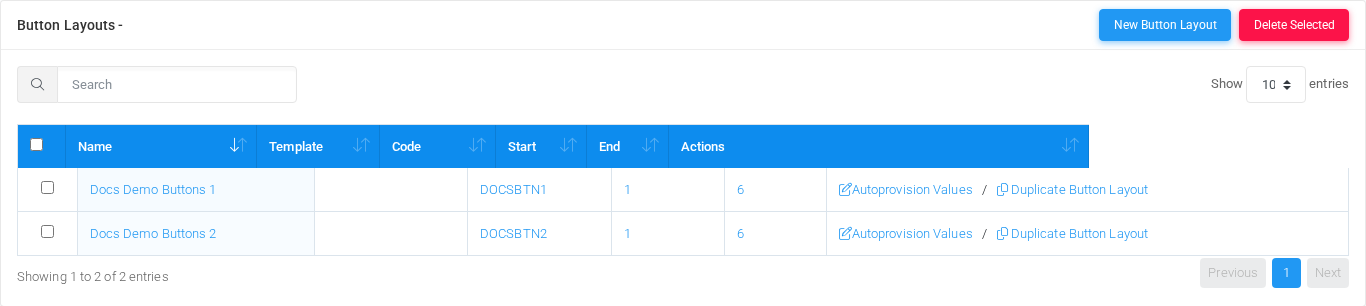

Button Layouts list page in the Canistracci OIL tenant.

Working with objects

Task	How to do it
Add	Select the New button layout action, complete the form, and select Save.
Edit	Open the button layout from the list by selecting its name, number, or row action. Change the form and select Save.
Delete	Select the row checkbox and use Delete Selected, or open the button layout and select Delete, then confirm.

Page functions

Action	Description
New Button Layout	Opens the creation form for a new button layout.
Delete Selected	Deletes the selected rows after confirmation.

List columns

Column	Description
Name	Display name used in lists and references.
Template	Object setting shown by the form.
Code	Dialed value, identifier, or matching value used by the PBX.
Start	Object setting shown by the form.
End	Object setting shown by the form.
Actions	Object setting shown by the form.

Demo records

The tenant contains 2 documentation demo records for this page: Docs Demo Buttons 1 and Docs Demo Buttons 2.

Deleting records

Before deleting a button layout, check references from call flows, destinations, schedules, reports, or provisioning objects. MiRTA PBX asks for confirmation before the delete is submitted.
