Create and Edit PJSIP Extensions

Use this page to create or edit a phone extension that registers as a PJSIP endpoint. The form works against the tenant currently selected in the top bar.

The screenshots use the Canistracci Oil demo extension 101 Bella Stone. Creating and editing use the same form: a new extension opens with tenant defaults, while an existing extension opens with saved values.

Creating and editing

Action	Description
Create	Open Configuration > Extensions and select New PJSIP peer. Fill the required fields and select Save.
Edit	Open an existing extension from the Extensions list. Update the required fields and select Save.
Delete	When delete permission is available, open the extension and select Delete. Confirm only after checking routing, phones, queues, and other references.

For PJSIP extensions, the endpoint username normally uses the extension number, a hyphen, and the tenant code, such as 101-CANISTRACCI. Press the swapped-arrow icon beside Username to switch the separator from a hyphen to an underscore, for example 101_CANISTRACCI. If custom usernames are enabled in Admin > Settings, you can enter a username that does not follow the generated tenant-code pattern.

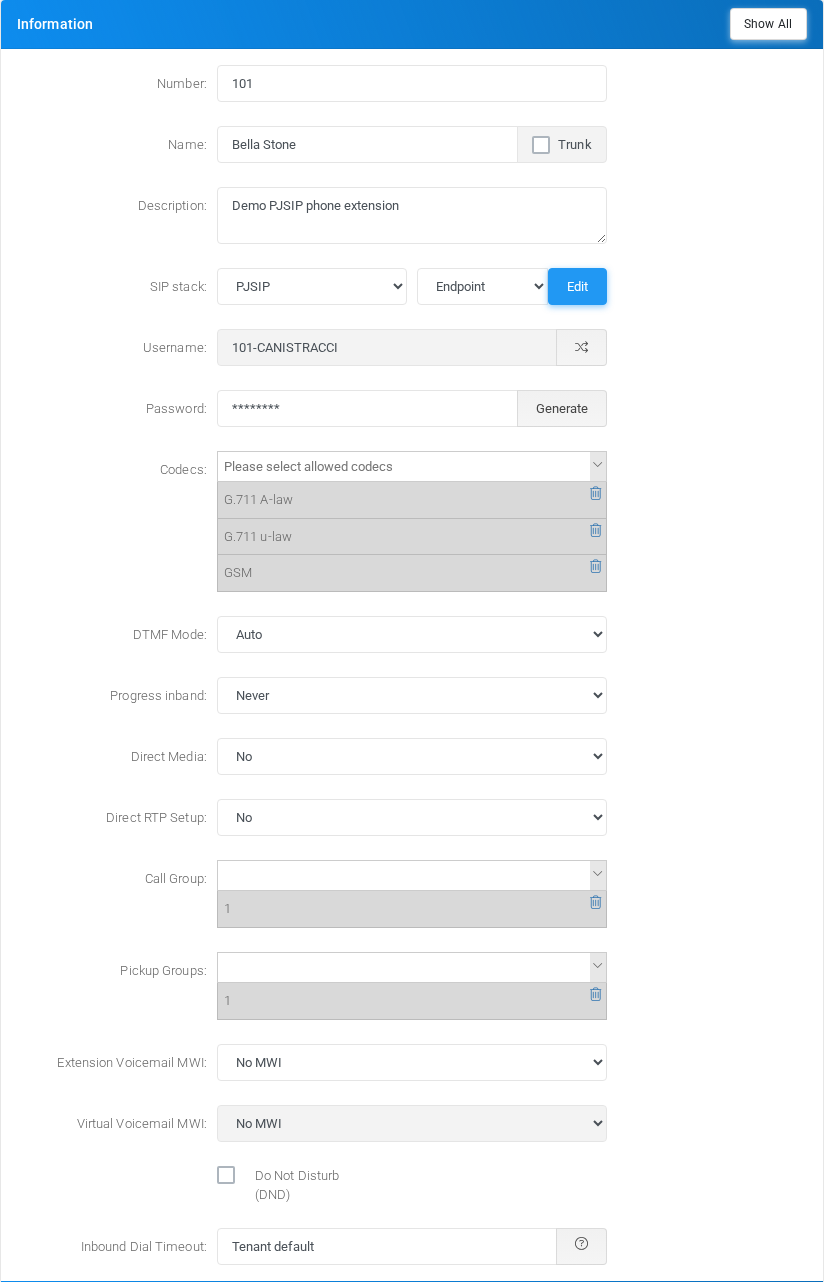

Information

Use this section for the extension identity, endpoint credentials, media basics, groups, voicemail message-waiting indication, DND state, and inbound ring timeout.

Block	Purpose
Number and name	Number is the internal extension number. Name is the display name used in lists, caller ID, and reports.
Description and emergency notes	Description is an administrator note. Emergency notes can be used by emergency routing and notification logic.
SIP stack	Shows whether the endpoint is using chan_sip or PJSIP. Users with switch permission can change the stack from this form or from the Extensions list.
Username and password	Endpoint credentials used by the phone or softphone. The default username pattern is the extension number followed by the tenant code.
Codecs and DTMF	Controls the allowed audio/video codecs and DTMF signaling mode used by the endpoint.
Media and groups	Direct media, call groups, pickup groups, spy groups, and message-waiting options control how the endpoint participates in calls and monitoring.
Voicemail, DND, and timeout	Voicemail MWI, DND, and inbound dial timeout control how incoming calls are presented and how long the extension rings.

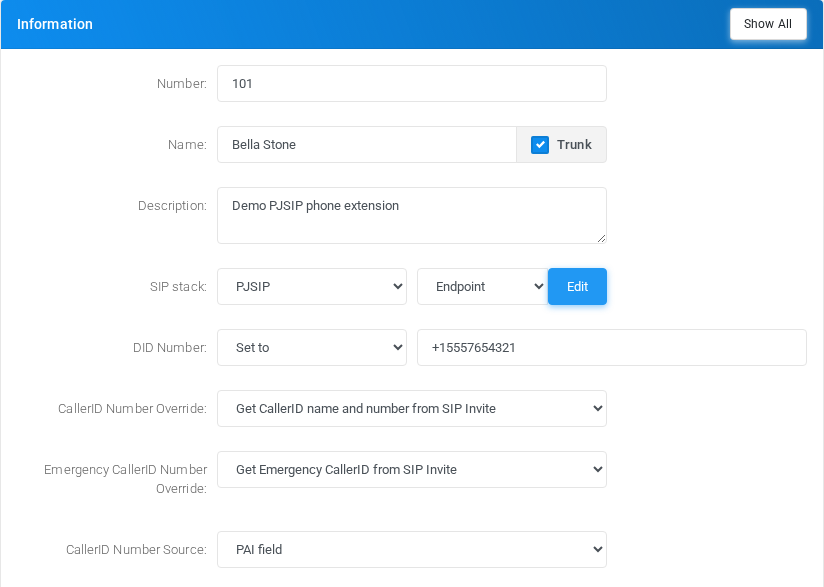

Trunk mode

Enable Trunk only when the PJSIP endpoint is another PBX, gateway, or upstream device that should receive calls by dialed number rather than as a single telephone endpoint. A normal phone extension should usually leave this option disabled.

Field or option	Effect
Trunk	Changes how calls are sent to the endpoint. With trunk mode disabled, MiRTA PBX dials the PJSIP endpoint contacts as a phone endpoint. With trunk mode enabled, MiRTA PBX sends the called number to the endpoint, or the configured DID override when one is set.
DID Number	Automatic sends the original called number to the peer. Set to sends the value entered in the DID number field instead, which is useful when the downstream PBX or gateway expects a fixed pilot number or a rewritten DID.
CallerID Number Override	Controls which outbound caller ID values are preserved from the SIP INVITE received from the trunk device. The default behavior can keep both caller ID name and number from the INVITE. The other choices keep only the number, keep only the name, or ignore the INVITE caller ID and use the caller ID configured on the extension.
Emergency CallerID Number Override	For emergency routes, Get Emergency CallerID from SIP Invite allows the emergency caller ID sent by the trunk device to pass through. Do not use Emergency CallerID from SIP Invite makes MiRTA PBX replace it with the extension emergency caller ID, or the tenant default emergency caller ID when the extension does not define one.
CallerID Number Source	Selects where inbound trunk caller ID is read from when a specific source is required. Automatic keeps the caller ID parsed by Asterisk. The explicit choices read the From, P-Asserted-Identity, P-Preferred-Identity, or Remote-Party-ID header and use it to set caller ID before routing.

In the dialplan, PJSIP trunk mode affects both direct endpoint dialing and registered-contact dialing. When contacts are used, MiRTA PBX rewrites the PJSIP contact URI user part from the endpoint identity to the dialed number, or to the DID override. If the endpoint is registered on another node, MiRTA PBX sends the call through the configured inter-node SIP trunking module.

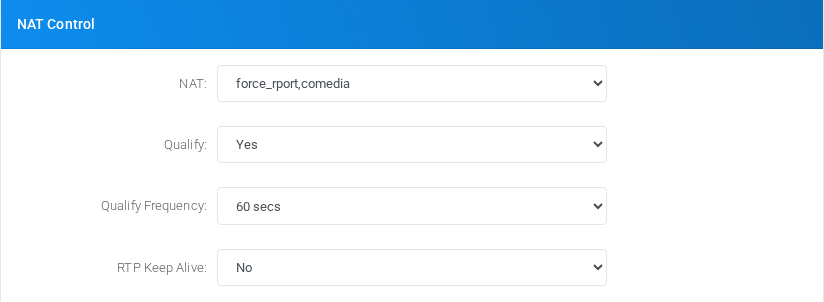

NAT Control

Use this section to control endpoint reachability and keepalive behavior for devices behind NAT or with changing network paths.

Block	Purpose
NAT	Defines how MiRTA PBX treats NAT traversal for the endpoint.
Qualify and qualify frequency	Controls whether the PBX checks endpoint reachability and how often checks are sent.
Keep alive and RTP keep alive	Sends periodic traffic to keep network mappings open and detect unavailable devices.

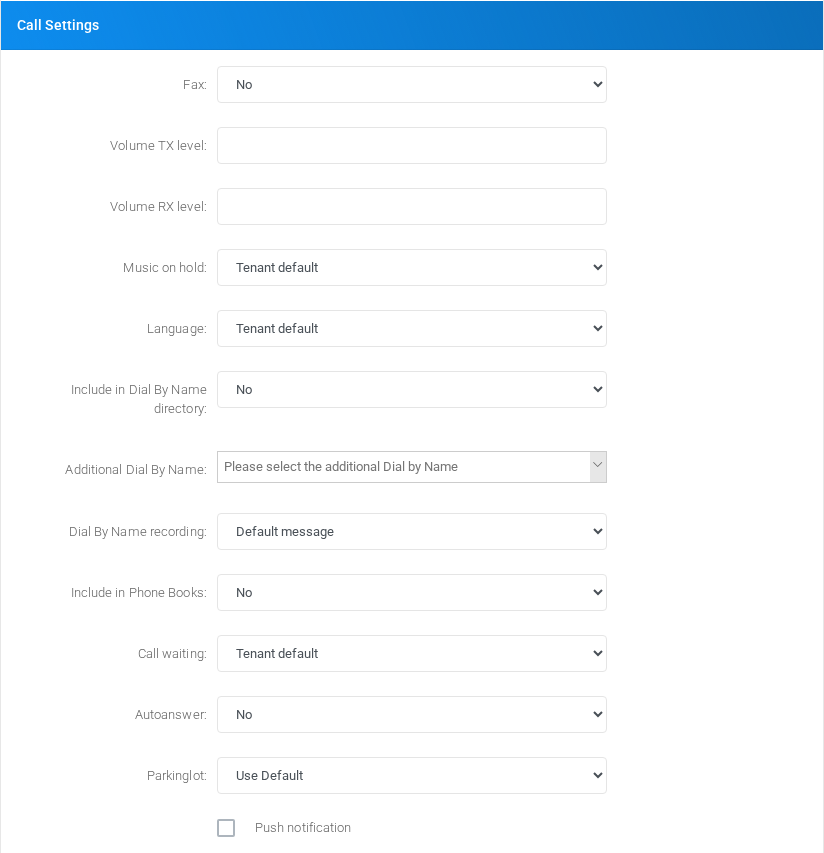

Call Settings

Use this section for call behavior that is not specific to inbound or outbound routing.

Block	Purpose
Fax and volume	Controls T.38 fax behavior and transmit/receive volume adjustments.
Music on hold and language	Selects media behavior and the preferred language for prompts played to the extension.
Directories and phone books	Controls whether the extension appears in dial-by-name directories and phone book generated lists.
Call waiting and autoanswer	Controls second-call handling and optional automatic answer behavior for supported phones.

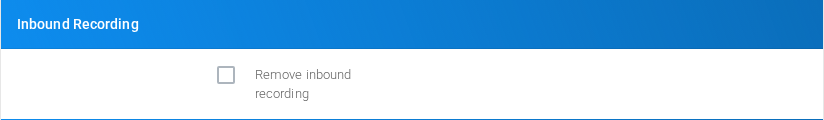

Inbound Recording

Use this section for recording behavior applied to calls received by the extension.

Block	Purpose
Inbound recording policy	Controls whether inbound calls are recorded and whether recording privacy behavior is enabled.
Recording notifications	When enabled, recordings can be mailed and processed according to tenant recording settings.

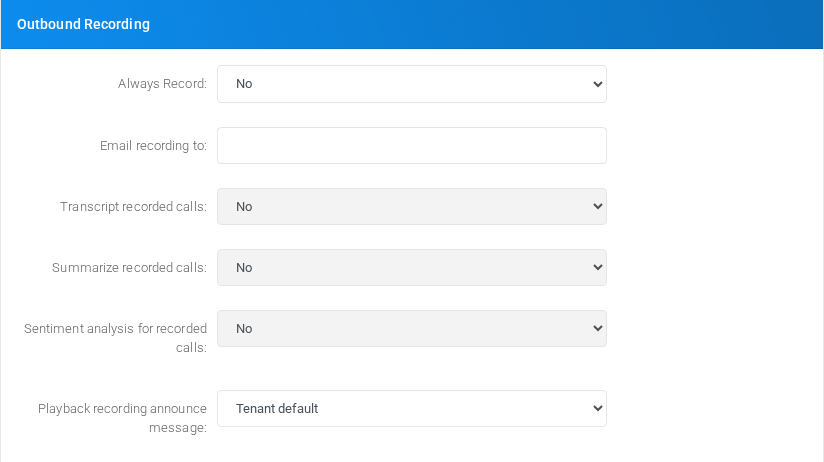

Outbound Recording

Use this section for recording and post-processing behavior applied to calls placed by the extension.

Block	Purpose
Always record	Controls whether outbound calls from this extension are recorded, unless tenant-wide settings force recording.
Email recording to	Sends matching recordings to the configured address. Minimum size can suppress very small recordings.
Transcript, summary, sentiment	Enables transcript, summary, and sentiment processing when the tenant supports those services.

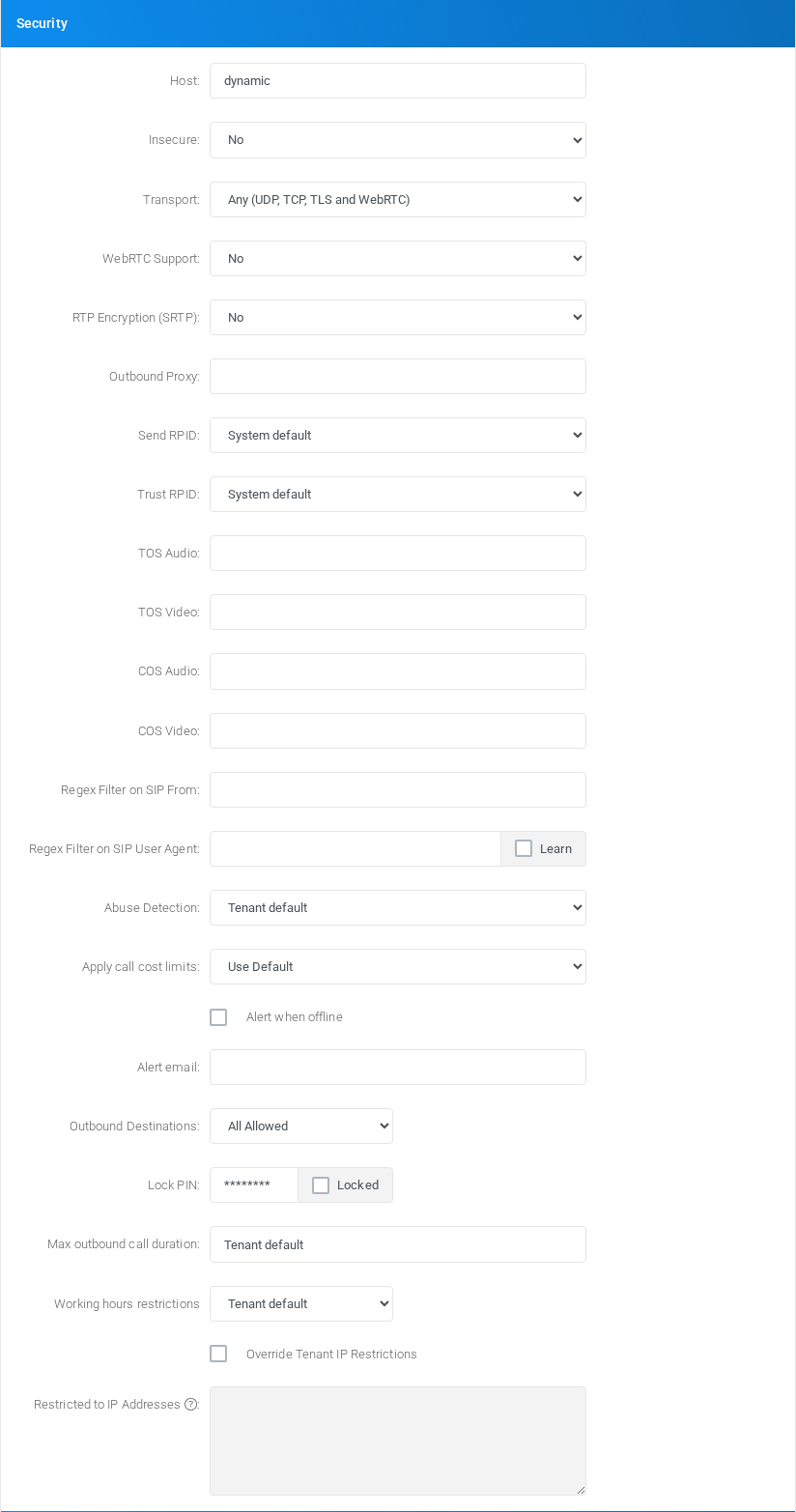

Security

Use this section to restrict registration, authentication, abuse behavior, cost limits, and outbound availability.

Block	Purpose
Authentication and network filters	Controls endpoint trust, allowed IPs, and authentication-related behavior.
Abuse detection and cost limits	Locks or warns on suspicious or excessive usage according to tenant policy.
Outbound destinations	Allows all calls, blocks calls, or applies a destination regex filter.
Lock PIN and max duration	Allows the extension to be locked and caps outbound call duration.
Working hours	Restricts outbound calling to the selected weekday condition.

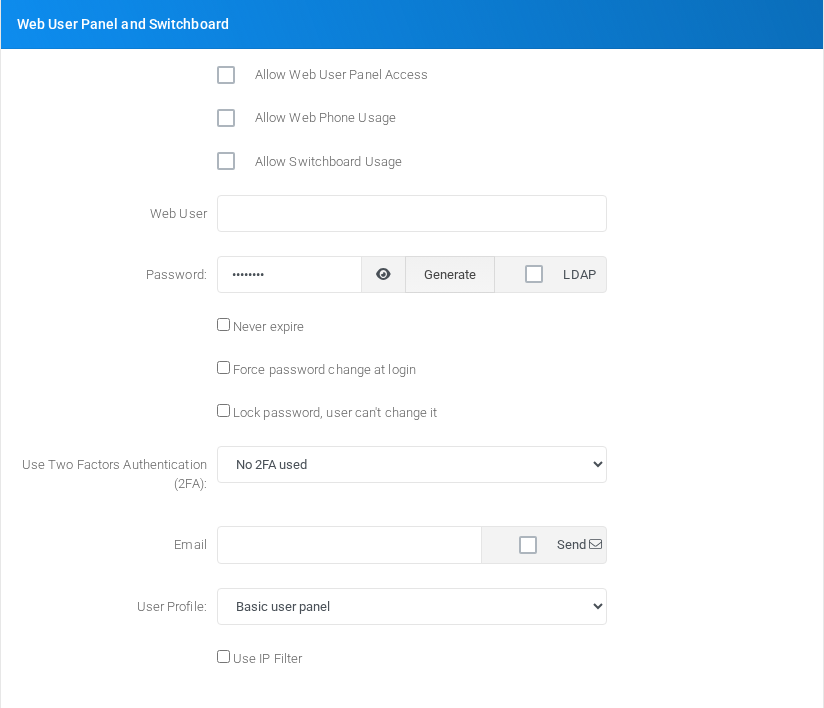

Web User Panel and Switchboard

Use this section to enable user-facing web access and related application permissions for the extension.

Block	Purpose
Access toggles	Enables the user panel, web phone, switchboard, and optional custom user application.
Web user and password	Sets the login identity and password. If no web user is specified, the endpoint username is used.
Password policy and 2FA	Controls expiry, forced change, lock state, LDAP use, and two-factor authentication.
Email, profile, and IP filter	Sets the user email, sends account information, assigns a user profile, and optionally restricts web access by IP.

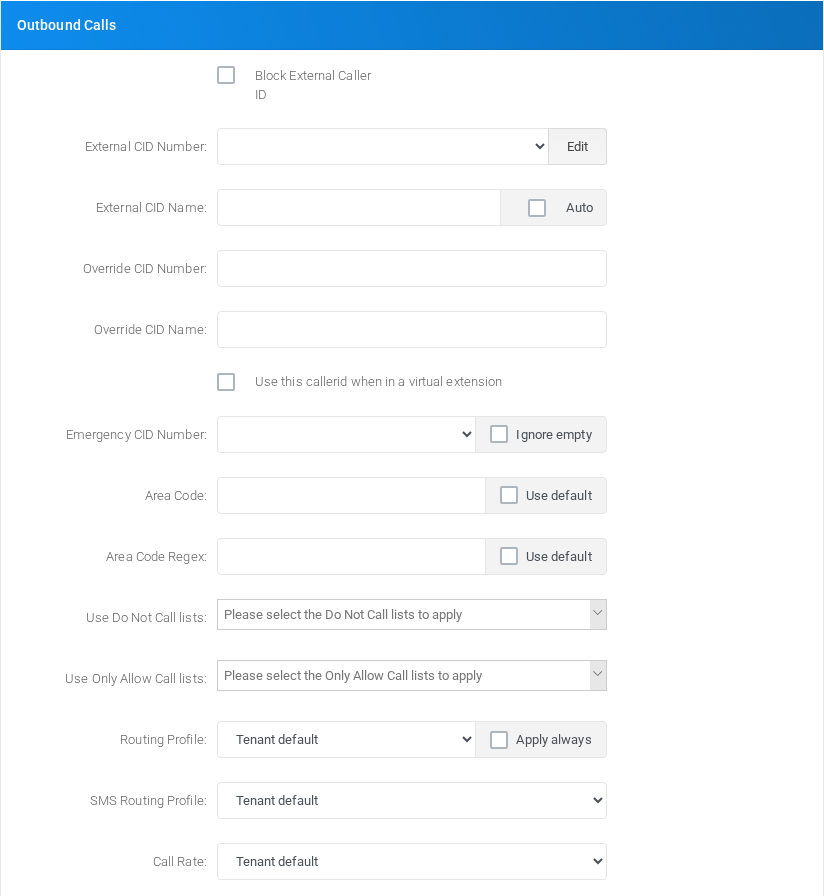

Outbound Calls

Use this section to control the caller ID, emergency caller ID, area-code handling, dialing filters, routing profile, and call rate used by outbound calls.

Block	Purpose
External caller ID	Sets or hides the caller ID number and name sent on outbound calls.
SMS and override caller ID	Controls SMS caller ID and optional SIP header based caller ID overrides.
Emergency caller ID	Defines the emergency number identity and whether empty emergency caller ID warnings are ignored.
Area code and caller ID regex	Applies prefixes and caller ID rewrite rules before routing.
Do Not and Only Allow lists	Applies tenant call-list restrictions to this extension.
Routing profile and call rate	Selects the routing profile, SMS routing profile, and client rate used by calls.

Inbound Calls

Use this section for inbound caller ID privacy controls.

Block	Purpose
Block inbound caller ID number	Prevents the caller ID number from being shown to this extension.
Block inbound caller ID name	Prevents the caller ID name from being shown to this extension.

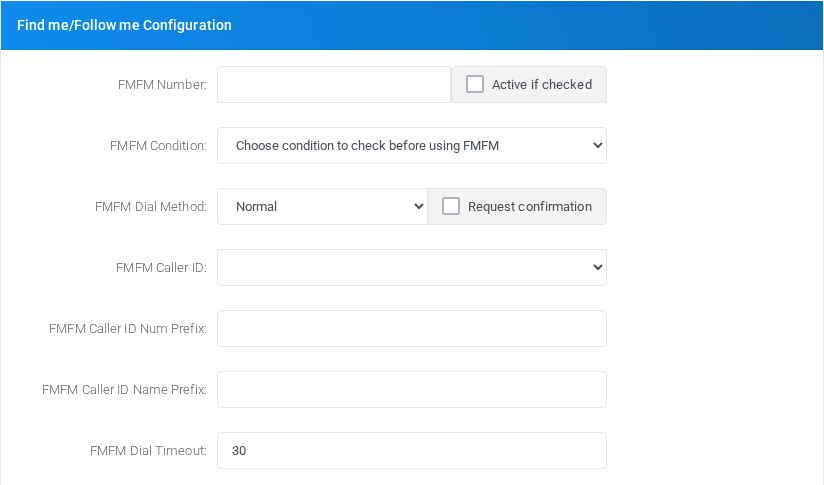

Find me/Follow me Configuration

Use this section to forward calls to an alternate number when find-me/follow-me is enabled.

Block	Purpose
FMFM number and status	Sets the external follow-me number and enables or disables the feature.
Condition and dial method	Limits follow-me behavior to a condition and selects how the alternate number is dialed.
Confirmation and messages	Requires answer confirmation and selects confirm/hold messages.
Caller ID and timing	Controls caller ID presentation, prefixes, delay, and dial timeout for the follow-me call.

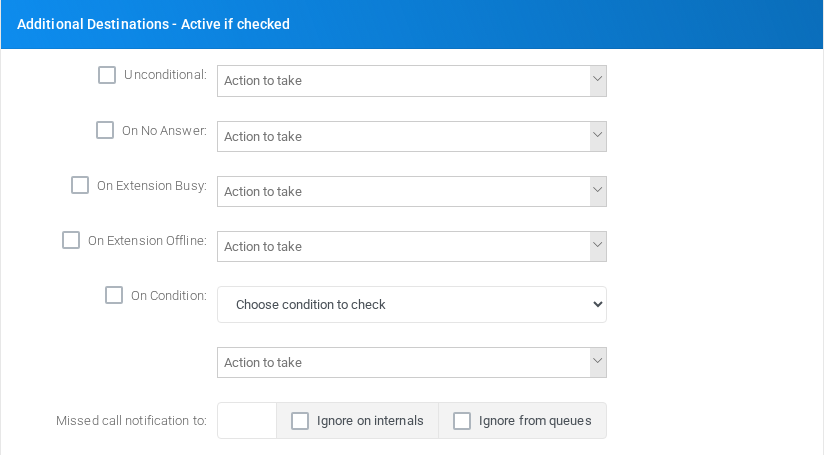

Additional Destinations - Active if checked

Use this section to define failover or conditional routing for calls that do not complete normally.

Block	Purpose
Unconditional	Always routes calls to the selected destination when enabled.
On no answer, busy, or offline	Routes calls when the extension does not answer, is busy, or is offline.
On condition	Routes calls to a selected destination when the chosen condition matches.
Missed call notification	Sends email notifications for missed calls, with options to ignore internal or queue-originated calls.

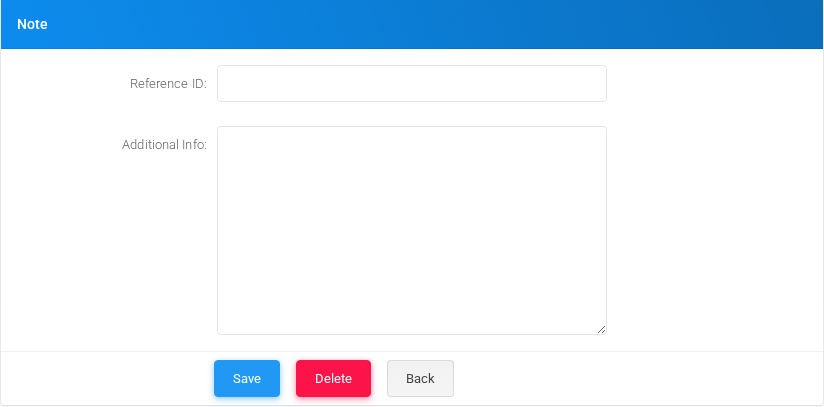

Note

Use this section for administrative classification and free-form notes, then save or delete the extension.

Block	Purpose
Branch and department	Classifies the extension for reporting and administration.
Reference ID and additional info	Stores external references and notes.
Save, delete, and back	Save applies changes, Delete removes the extension when allowed, and Back returns to the Extensions list.
