Overview

The Mail to Call page configures mailboxes that turn received email into outbound call jobs. Open it from Configuration > Settings > Mail to Call.

The page works against the tenant currently selected in the top bar. The screenshots and demo rows were captured in the Canistracci OIL tenant.

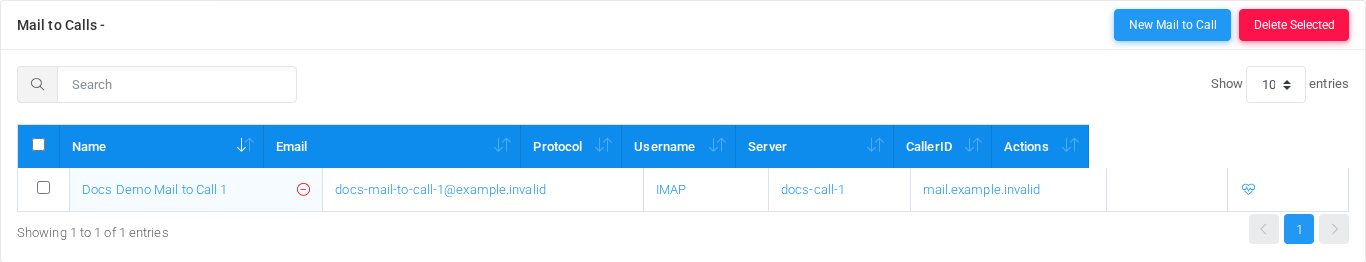

Mail to Call list page in the Canistracci OIL tenant.

Working with objects

Task	How to do it
Add	Select the New mail-to-call mailbox action, complete the form, and select Save.
Edit	Open the mail-to-call mailbox from the list by selecting its name, number, or row action. Change the form and select Save.
Delete	Select the row checkbox and use Delete Selected, or open the mail-to-call mailbox and select Delete, then confirm.

Page functions

Action	Description
New Mail to Call	Opens the creation form for a new mail to call.
Delete Selected	Deletes the selected rows after confirmation.

List columns

Column	Description
Name	Display name used in lists and references.
Email	Email address used for notifications, delivery, or mailbox access.
Protocol	Mode selector that changes the behavior of the object.
Username	Display name used in lists and references.
Server	Server, host, or node selection used by the object.
CallerID	Caller ID or caller matching value.
Actions	Object setting shown by the form.

Demo records

The tenant contains 1 documentation demo record for this page: Docs Demo Mail to Call 1.

Deleting records

Before deleting a mail-to-call mailbox, check references from call flows, destinations, schedules, reports, or provisioning objects. MiRTA PBX asks for confirmation before the delete is submitted.
